Isostatic Graphite Materials - Graphite Block / Rod / Plate / Cylinder
Isostatic Graphite Machining Part Done to Drawing
SiC Coating, Purify to 5 ppm
Benefits
High Density, Fine Grain Size, High Strength, High Thermal and Electrical Conductivity
Isostatic Property, Excellent Oxidization Resistance, Excellent Chemical and Thermal Resistance, High Purity, Long Life Time
Easy to Machine, Large Size Available Length > 3200mm
Application
Vacuum Furnace, Sintering, Casting, Heat Treatment, Metal Melting, Solar Hot Zone, EDM, Semiconductor, Aluminum Treatment, Aerospace, Mould, Glass and Refractory Industries

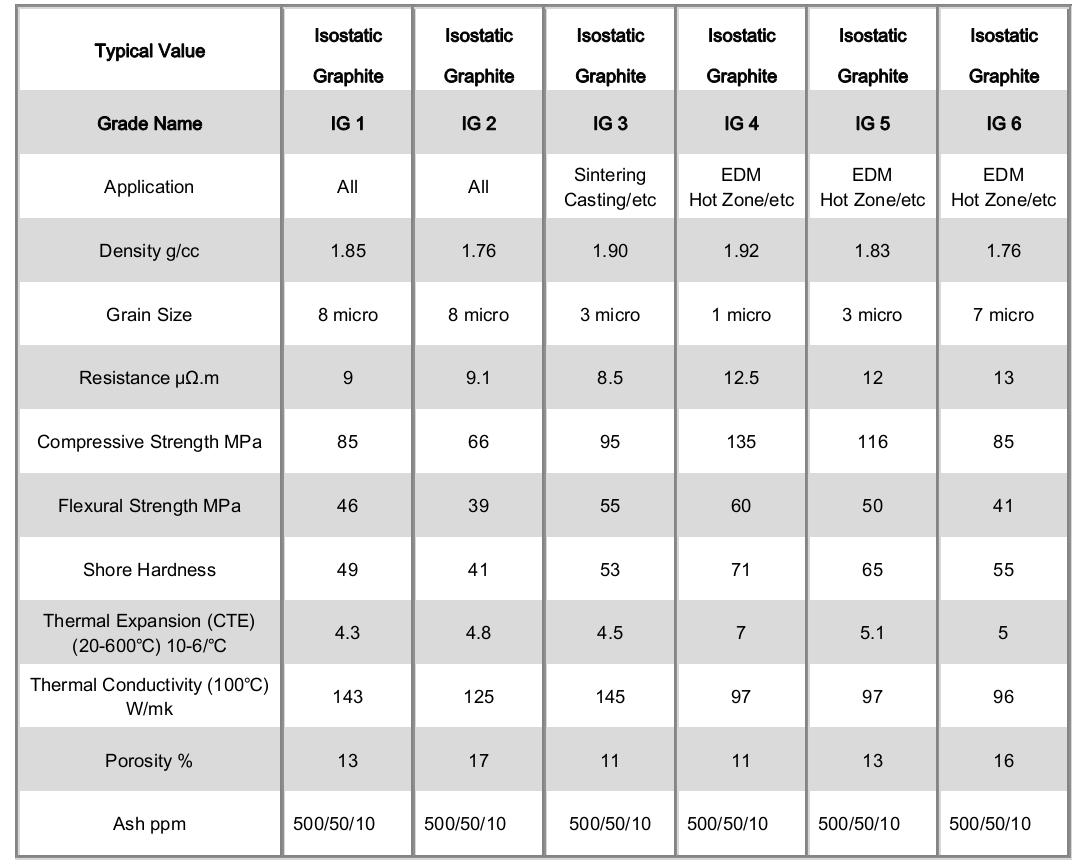

The Data Are Average Values. Other Material Grades Available, Contact Us for More Details.
What is Isostatic Graphite?
CM Carbon’s Isostatic Graphite is done by cold isostatic pressing with liquid pressure over 6000 tons, and has isotropic property in different directions. After decades of technical innovations on graphite raw materials property, shaping, carbonizing, impregnation and graphitizing, Isostatic Graphite made by CM Carbon has become the benchmark in the market. Our Graphite, Graphite Felt and CFC have good market share in China, America, Europe, and other Asian Countries
